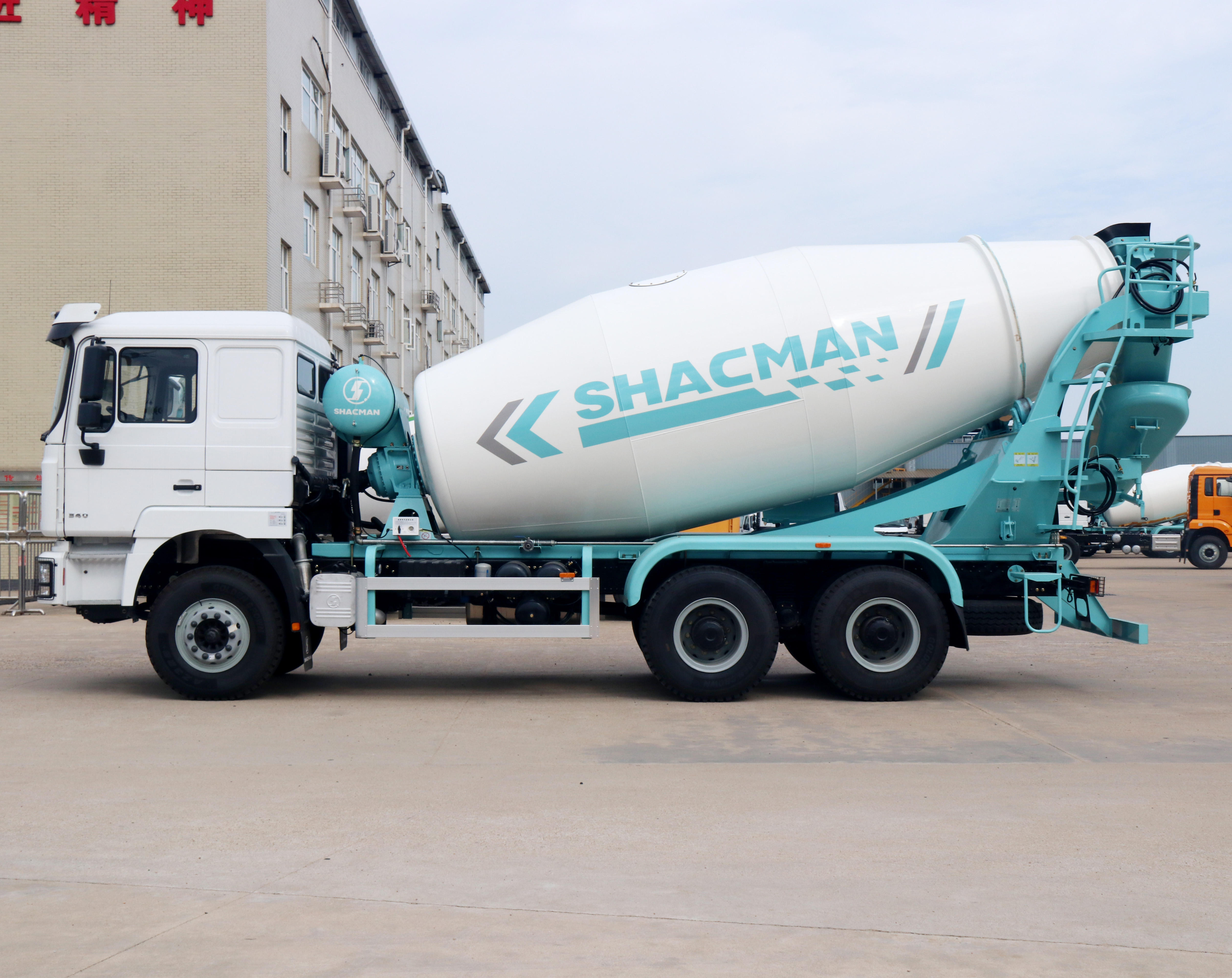

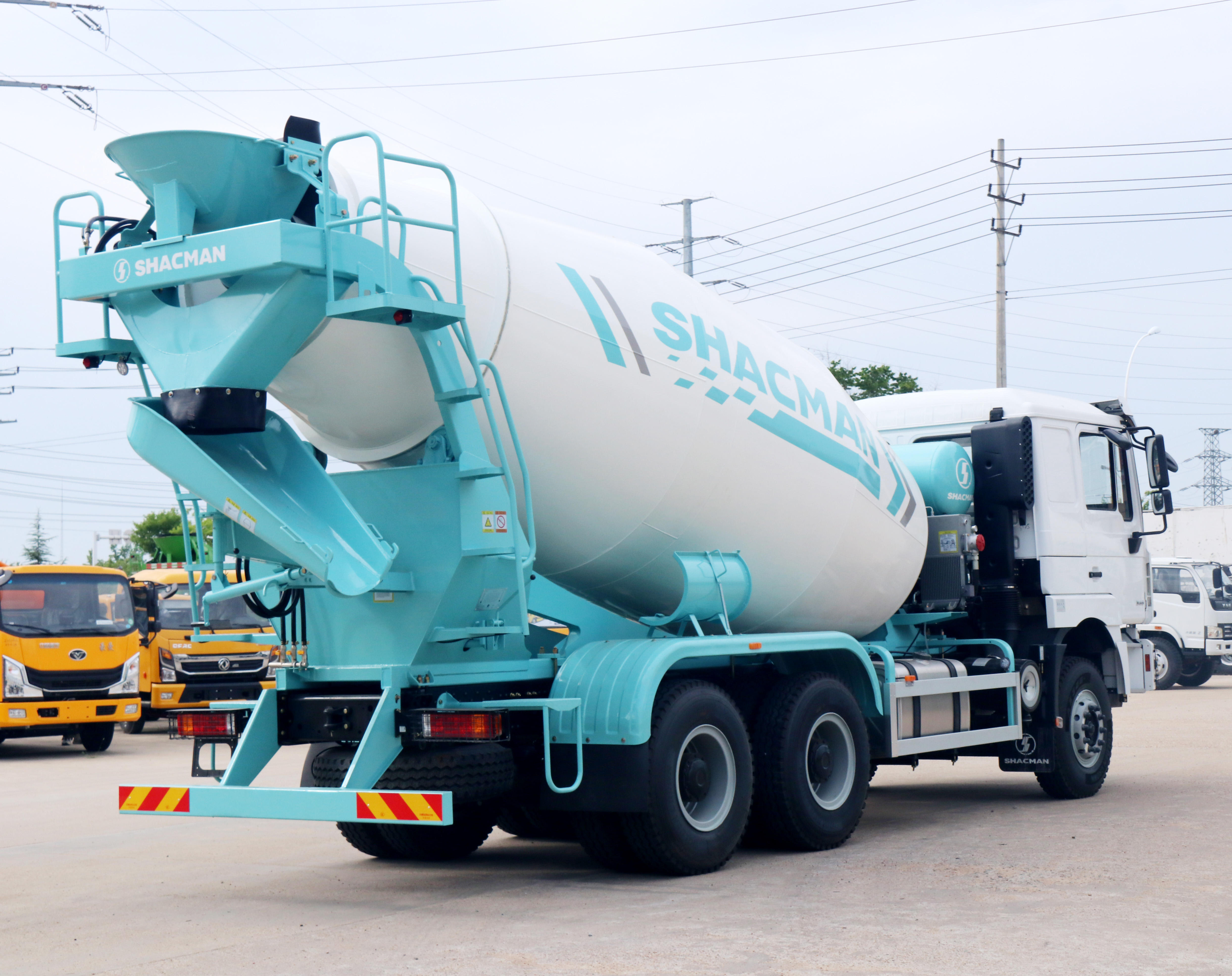

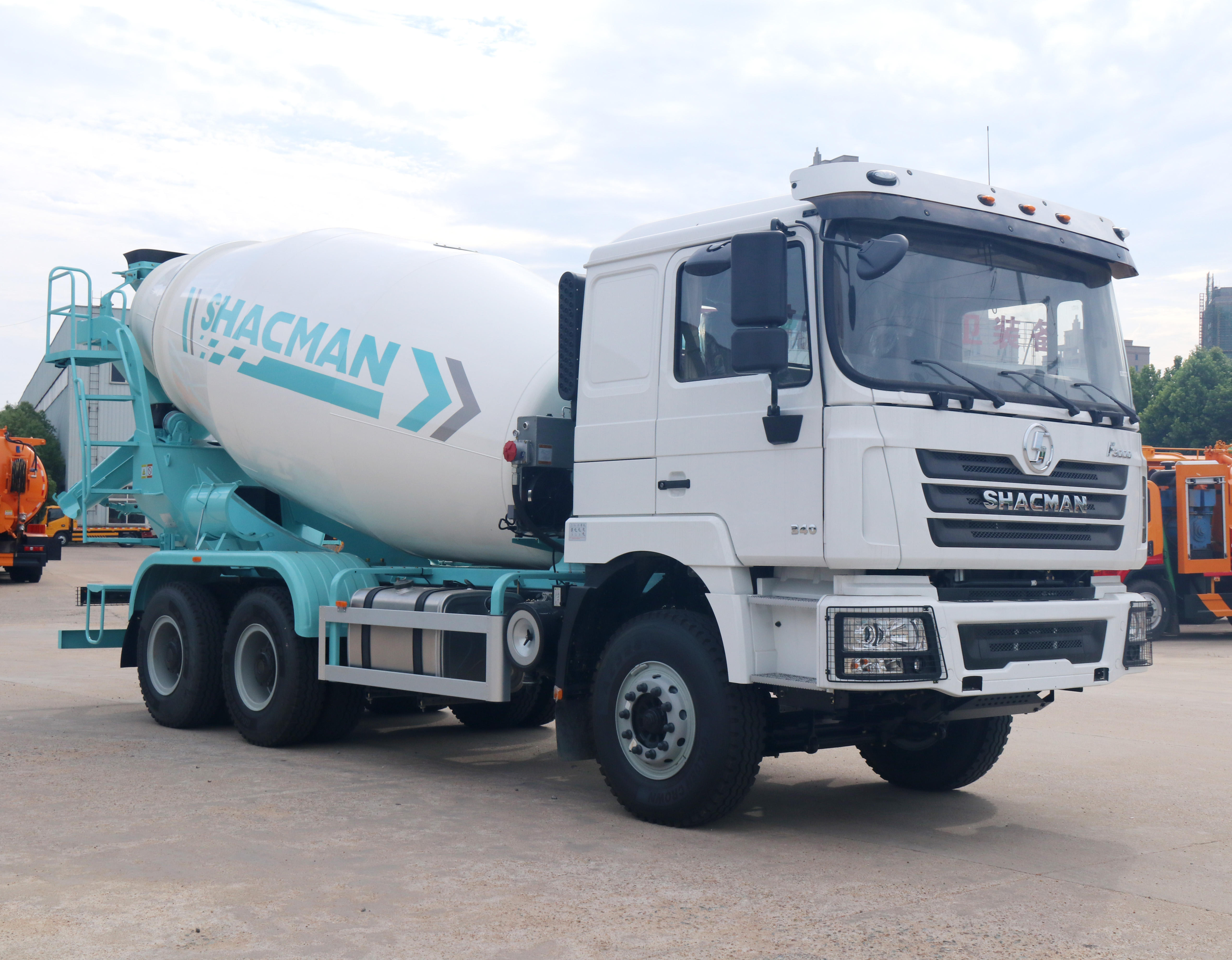

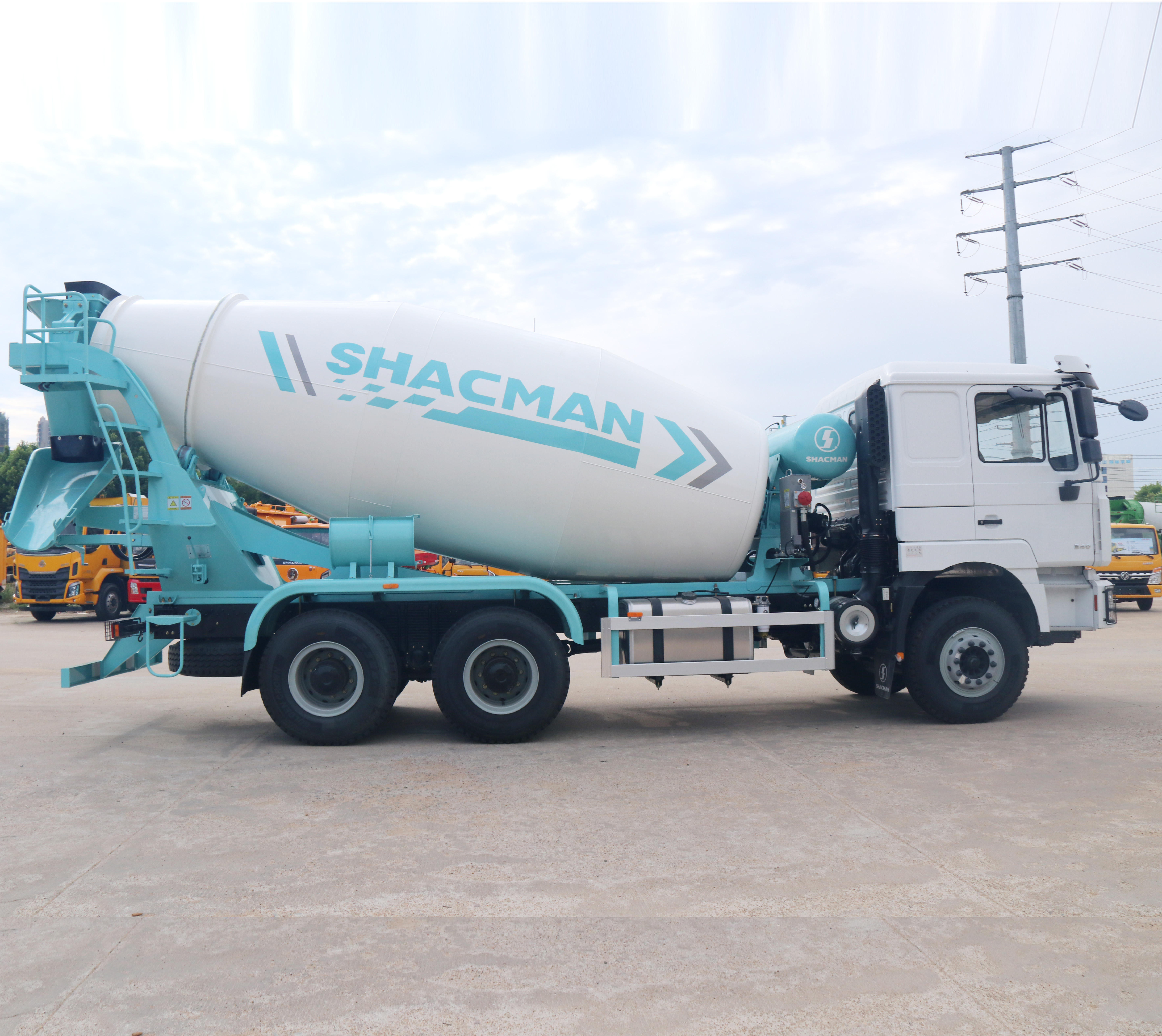

Shacman Concrete Mixer Truck New 6x4 Concrete Mixer Hot Sale

A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

Inquiry now
Vehicle Parameters
Vehicle Model
EHY5255GJBSX
Vehicle Brand
HUAYI
Overall dimensions
9750X2600X4000mm
Curb weight
11500kg
Loading capacity
10m3
Color
optional
Chassis Parameters
Chassis model
SX5255GJBJR404
Chassis brand
SHACMAN
Overall dimensions
9000x2495x3250mm
Wheel base
3975+1400mm
Front/rear wheel track
2015,1850/1850mm
Front/rear suspension
1430/1000mm
Approach/departure angle
19/24°
Maximum speed
82km/h
Cab
Configuration
Delong F3000 flat top cab, hydraulic seat, four-point hydraulic suspension cab, air conditioning, electric window machine, manual
flip, F3000 Cooling System, Domestic Left-hand Steering Machine, Iron Storage Tank, Foyer Air Filter, Iron Bumper, 165Ah Battery,
ETA Circuit Breaker, SHACMAN logo, all English identification.
Color
White, other color is optional
Engine
Model
WP10.340E22
Emission
Euro 2
Type
6 cylinders, in-line, diesel engine.
Rated power
340hp,rated power speed 2200rpm
Displacement
9726CC
Max.torque
1250N.m
Bore x stroke
126X155mm
Manufacturer
Weichai Power CO.,LTD
Tire
12.00R20 steel wire tire
10+1 nos
Transmission
10 speed forward 2 reverse
Steering device
Power assisted steering
Steering wheel
Left hand drive
Concrete Mixer Structure  Parameters
Mixing capacity(m³)
10
Color and Logo
Optional
Tank material
4mm alloy steel
Tank front head
8mm alloy steel
Hydraulic pump
ITALY ARK
Hydraulic motor
ITALY ARK
Radiator
KAIPENG
Color and Logo
Optional
Standard Configuration
chassis,sub frame,mixer tank, ITALY TOPUNION reducer, ITALY ARK hydraulic pump and hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
