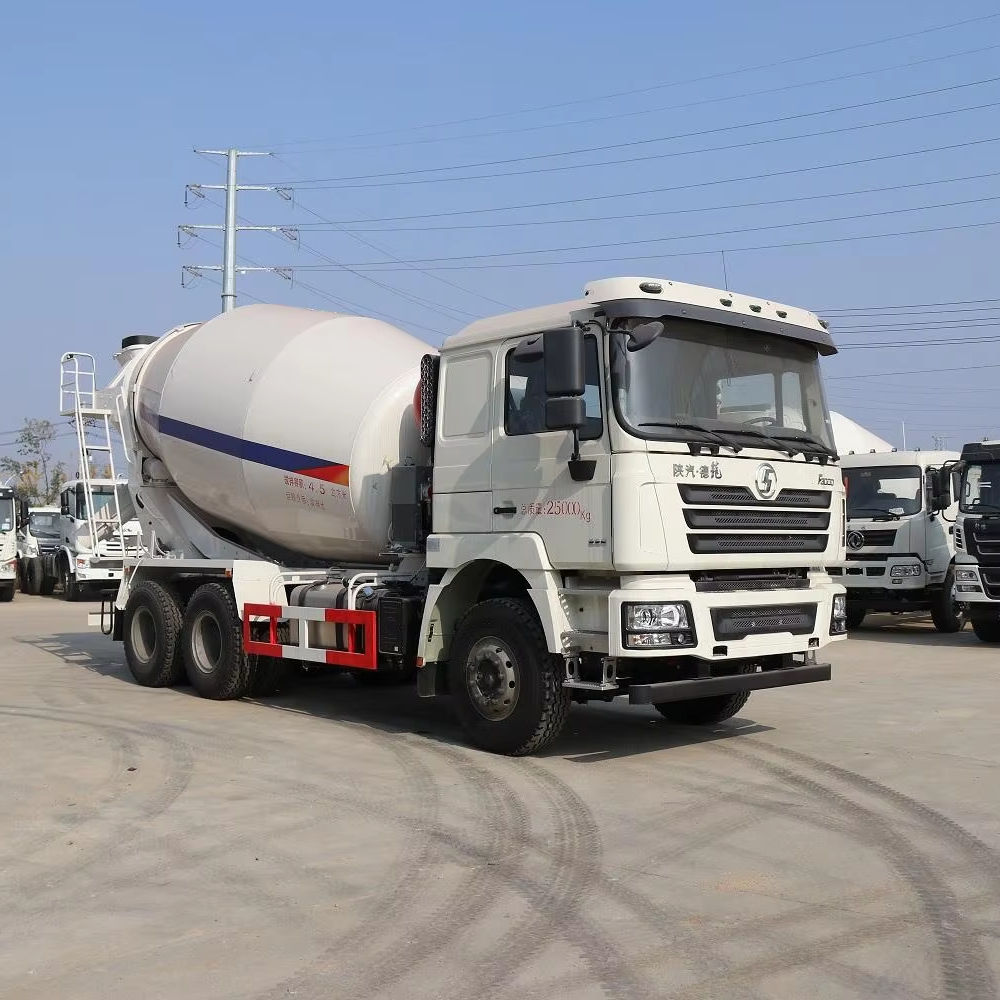

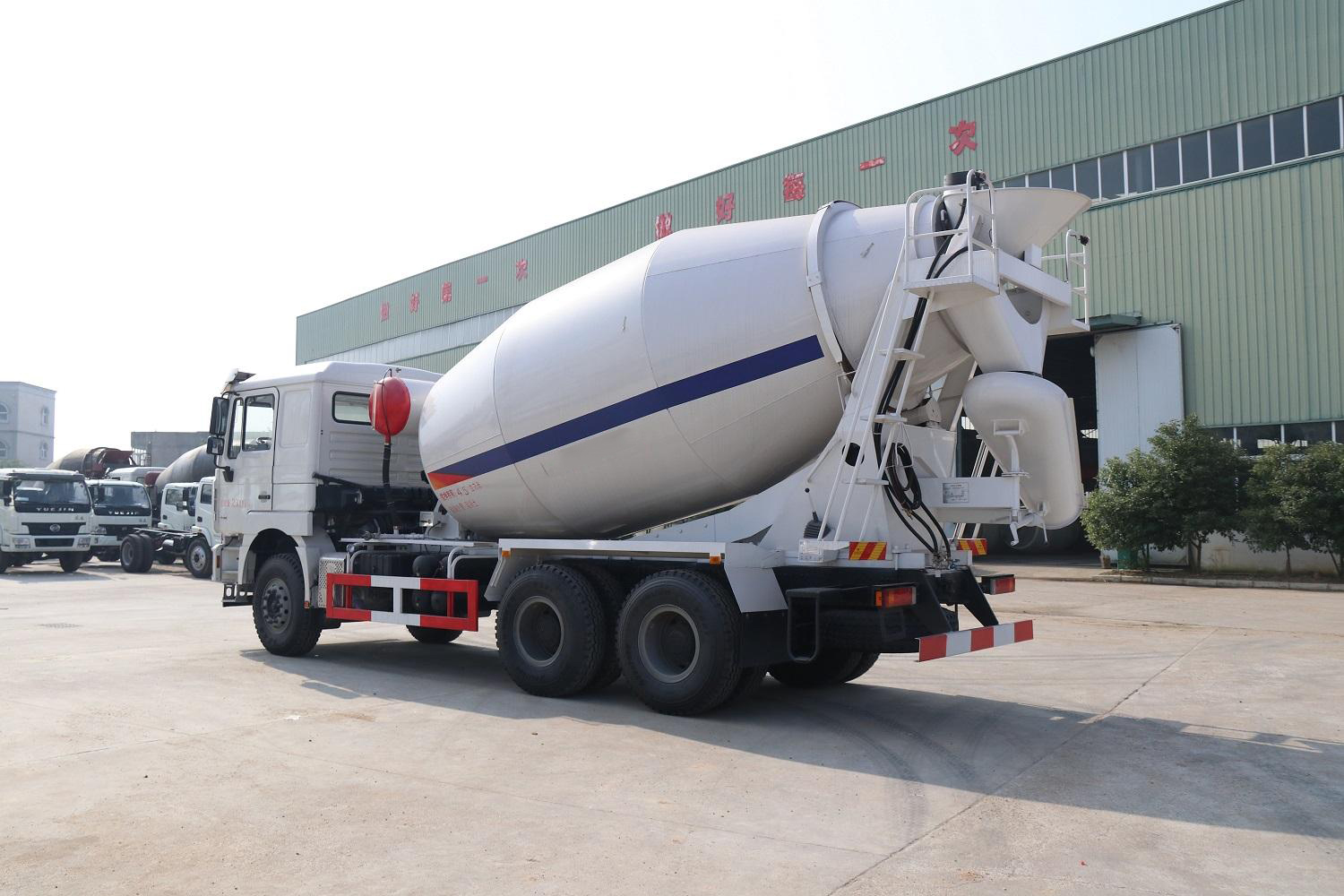

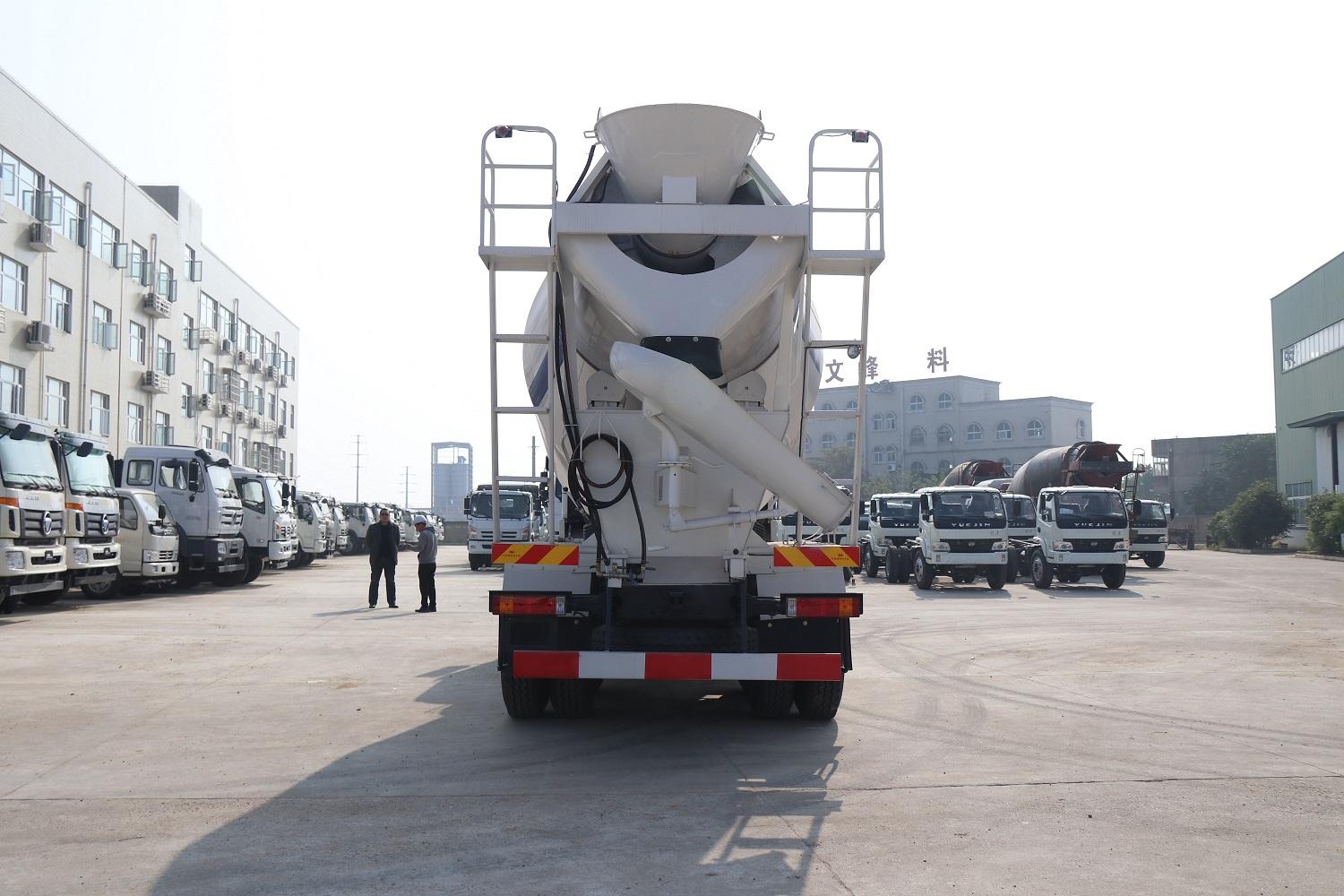

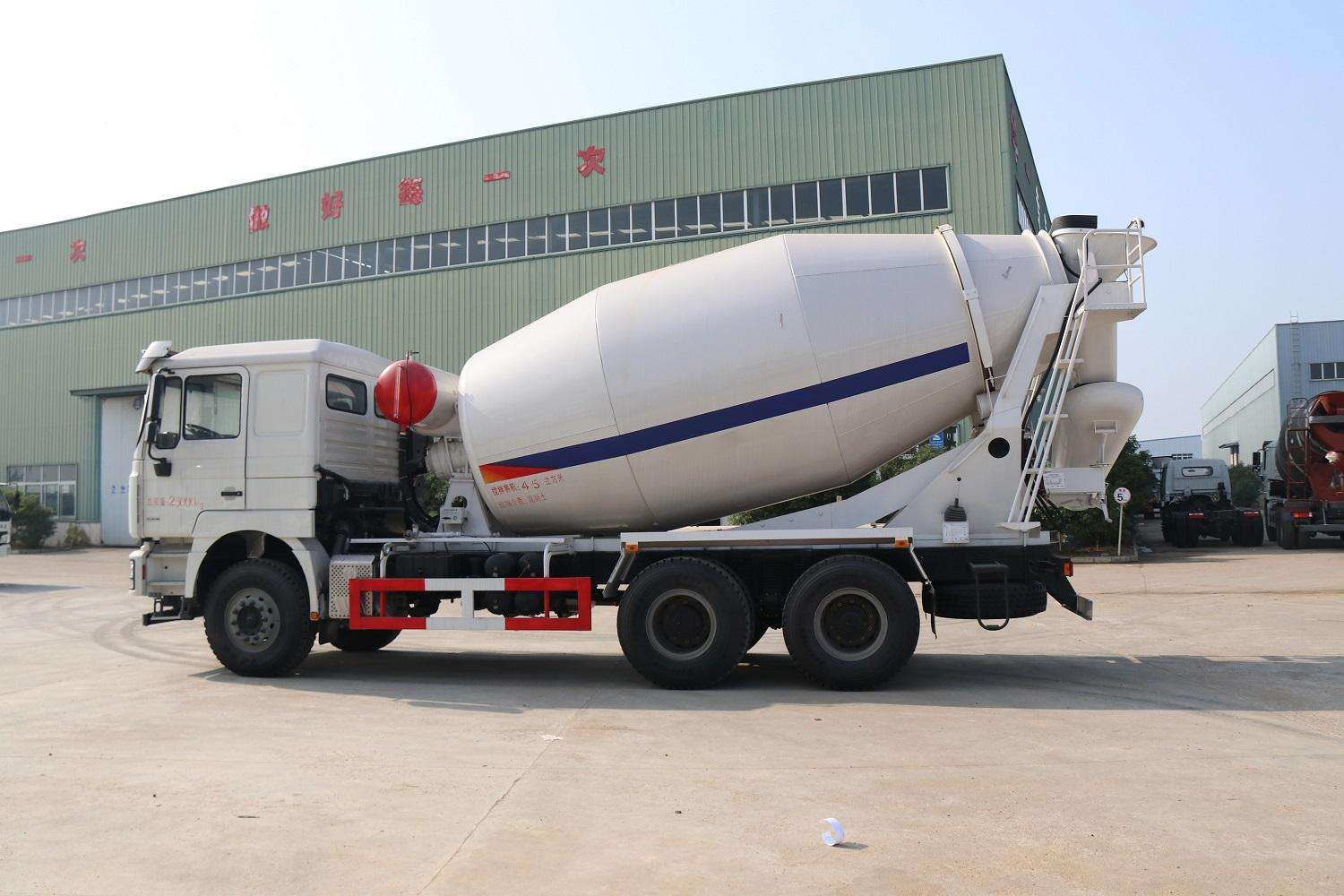

SHACMAN 6X4 Diesel Engine Concrete Cement Mixer Truck

A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

Inquiry now

Vehicle Parameters
Vehicle Model	EHY5250GJBA	Vehicle Brand
Overall dimensions	8100X2500X3750mm	Curb weight	12300kg
Loading capacity	10m3	Color	optional
Chassis Parameters
Chassis model	DFL5250GJBA	Chassis brand	DONGFENG
Overall dimensions	8090x2500x3030mm	Wheel base	3800+1350mm
Cab	D310 Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver’s seat, air conditioning system
Engine	Dongfeng Cummins L375 30
	Horse power	375hp
	Emission	Euro 3
	Displacement	8900ml
Tire	315/80R22.5	Transmission	9JS150T-B DD 9 forward & 1 reverse
Steering device	Power assisted steering	Steering wheel	Left hand drive
Concrete Mixer Structure Parameters
Mixing capacity(m³)	10	Color and Logo	Optional
Feeding speed (m³/min)	≥5	Discharge speed(m³/min)	≥3
Discharge residual rate	≤0.5%	Slump scope(mm)	50-210
Water tank capacity(L)	300	Water pressure(Mpa)	0.35-0.38
Tank material	5mm alloy steel	Tank front head	8mm alloy steel
Standard Configuration	chassis, sub frame, mixer tank, reducer, hydraulic pump, hydraulic motor, radiator, water tank, cleaning hose, feed port, discharge port, climbing ladder, air pressure water supply device.
