A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.
[VehicleTechnical Parameters] | |

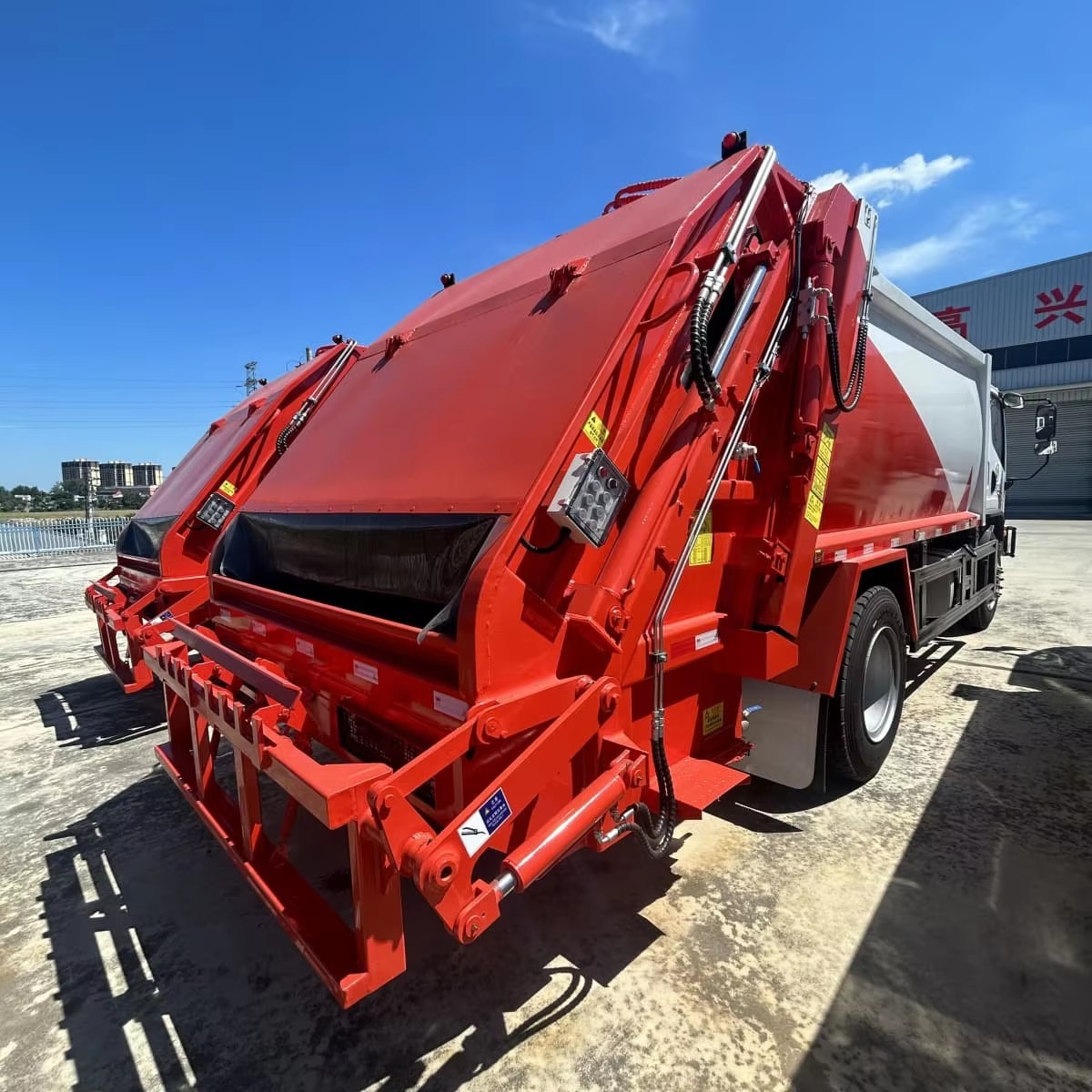

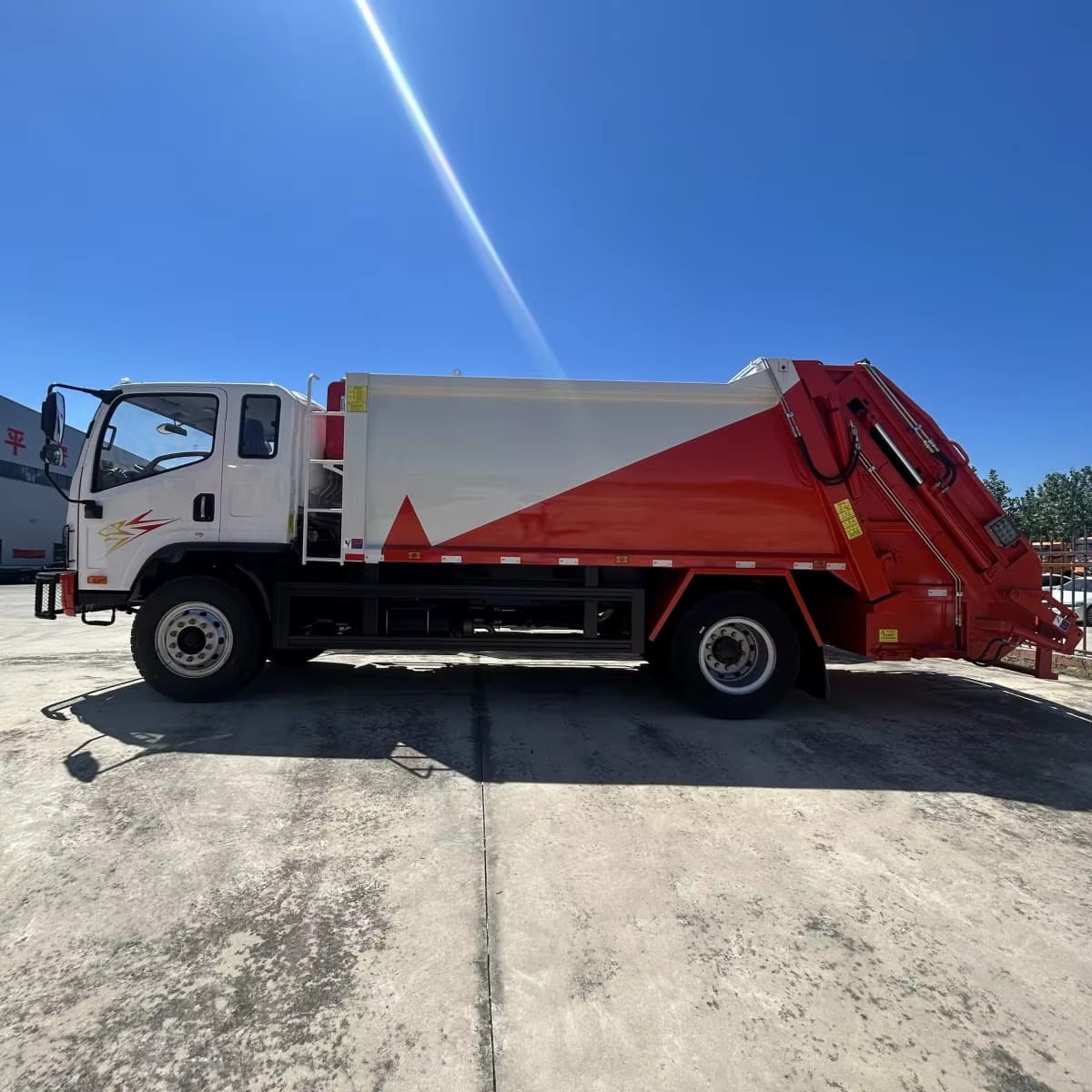

Product Name | compressed rubbish vehicle |
Kerb Weight (Kg) | 6495 |
Overall Dimensions (mm) | 6800*2550*2950 |
Box volume (m3) | 10 |
Box thickness (mm) | 4 on the side and 4 at the bottom |
Box Body Material Quality | Q345 manganese steel plate |
Compression Density (t/m ³) | 0.6-0.8 |
Working ambient temperature (℃) | -20~45 |
Sewage Tank Capacity (L) | 600 |
Filling cycle time (S) | ≤35 |
Compression cycle time (S) | ≤15 |
Uninstall cycle time (S) | ≤60 |
Operating Mode | Automatic + Manual |
Max Passengers Allowed | 3 |
[Chassis Technical Parameters] | |

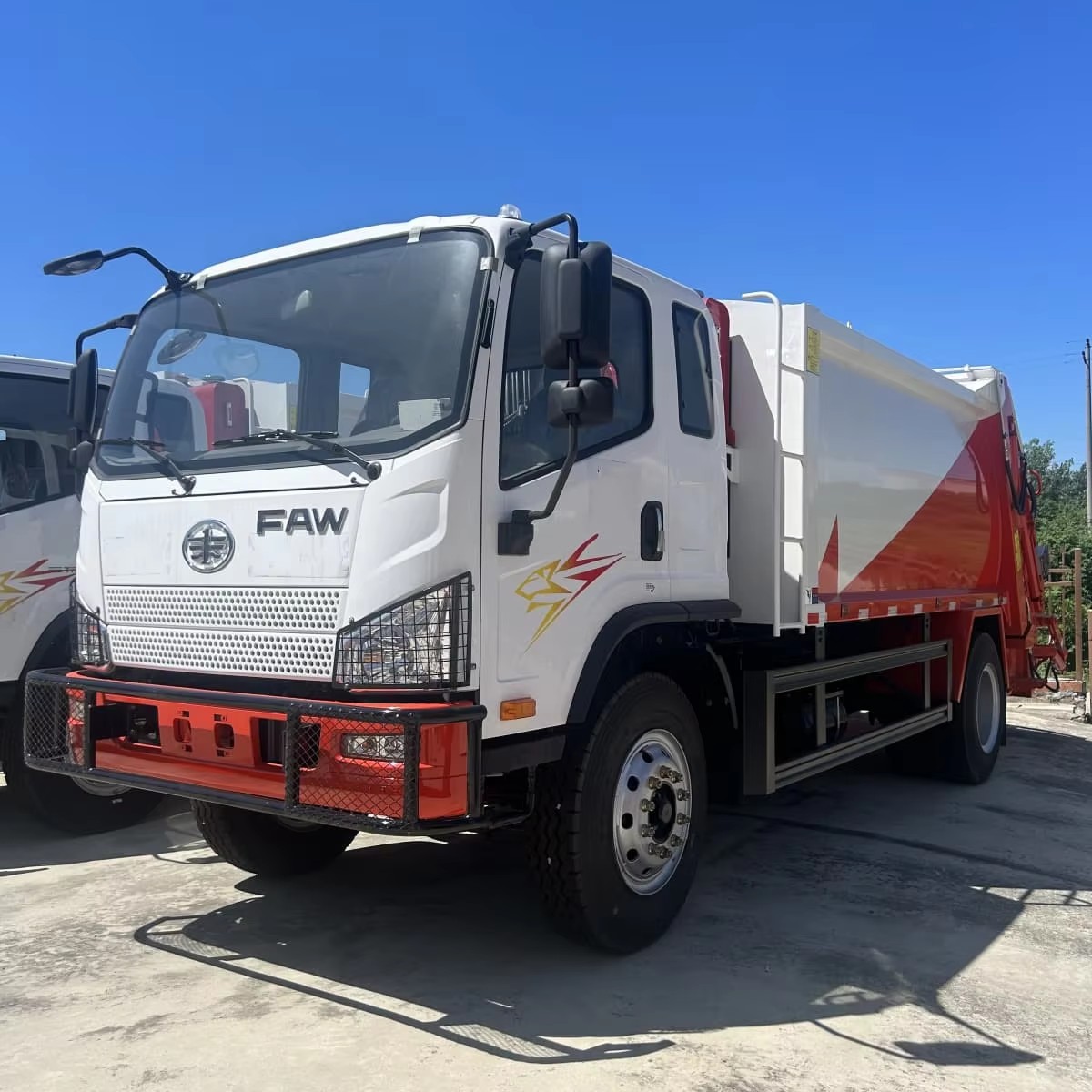

Brand Name | 1-FAW |
Brake | Empty ship air brake/oil brake |
Fuel type | diesel |
Engine Power(kw) | 110 |
Front Axle/Rear Axle (t) | 4.5/9 |
Gearbox Model | 8-speed transmission |
Number of axes | 2 |
Wheelbase (mm) | 3800 |
Number of tires | 6 |
Tire size | 9.00R20 |
