A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

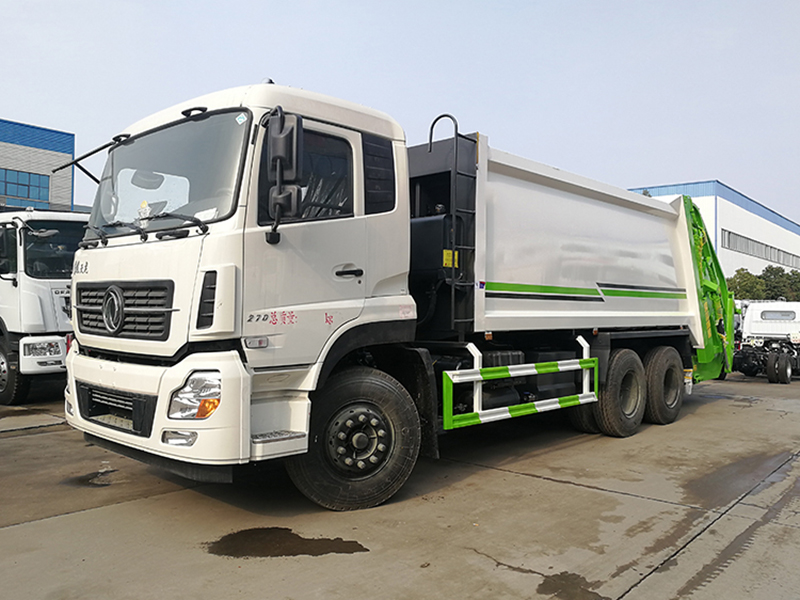

| Vehicle Description | |
| Overall dimensions | 10350*2500*3400mm |
| GVW | 25000kg |
| Curb weight | 14870kg |
| Loading weight | / |

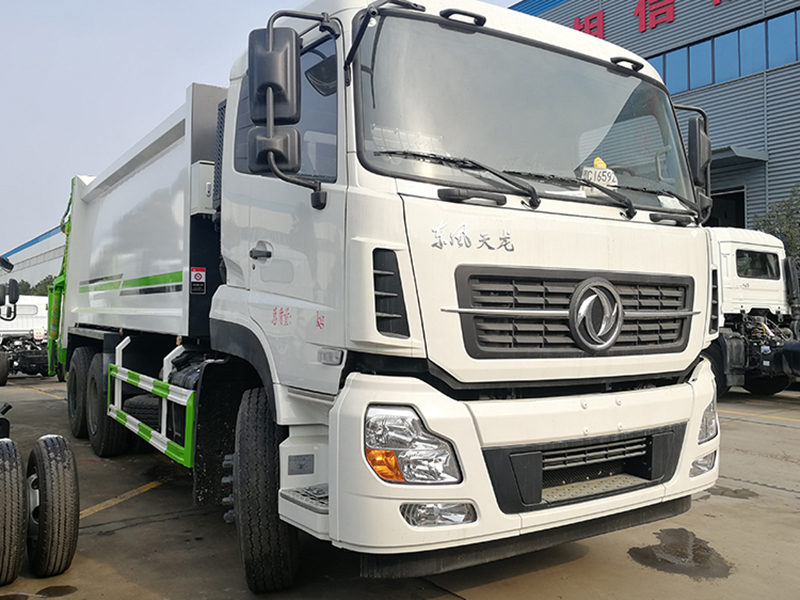

| Chassis brand | DONGFENG |
| Traction type | 6*4; Left hand drive |
| Up-parts Specification | ||
| Dustbin volume | 16-18cbm | |
| Material & thickness | Side | 4mm Q345 |
| Bottom | 5mm Q235A | |

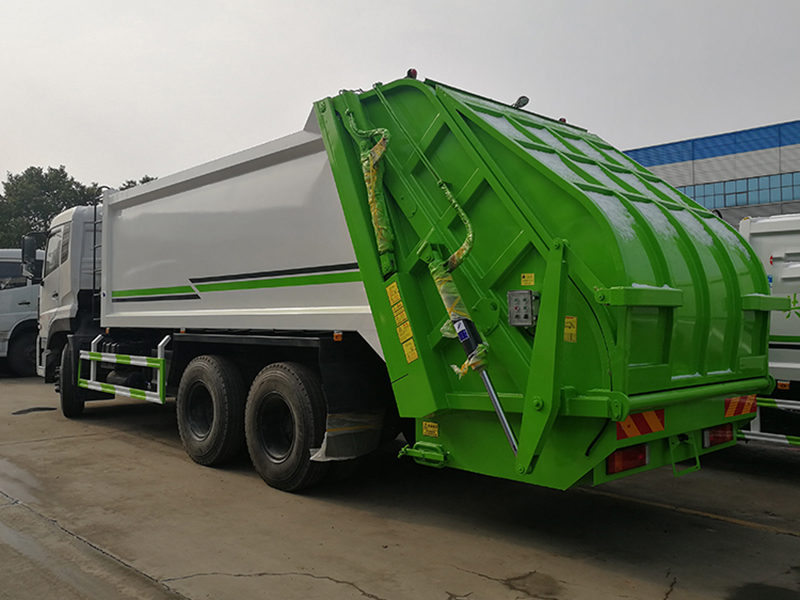

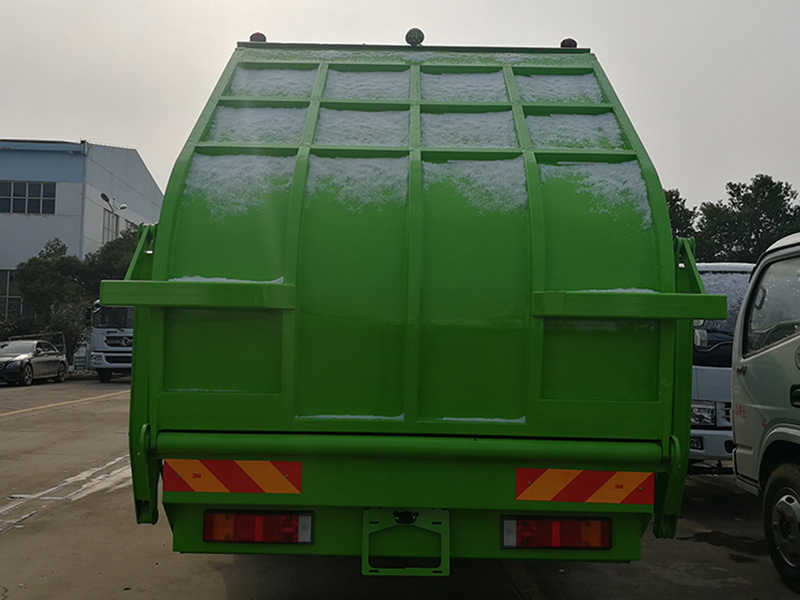

| Type of Rear garbage filler (Rear Turnover device) | 1.Hanging trash bin | |
| 2.Swing arm | ||
| 3.Dustpan | ||
| Control system | Electrically Controlled Hydraulic + Manual Hydraulic | |
| Type of compactor | Fill, push and compression | |
| Garbage compact density | 0.9±0.05 T/m³ | |
| Sewage water tank | Rear | About 500L, on the bottom of rear filler |
| Front | About 230L, on the front of garbage van | |
| Max compact | ≥141 KN | |
| Max push | ≥189 KN | |
| Tailgate ascending Angle | ~95° | |
| Cycle of loading | ≤40s | |
| Cycle of discharge | ≤45s | |
| Hydraulic pressure system working pressure | 16 Mpa | |
| PLC | Importation PLC (Programmable controller) | |
| Gear pump | Made in China | |
| Multi-way valve | Air controlled, Made in China | |
| Hydraulic oil cylinder | Made in China | |
| Hydraulic rubber hose | Made in China | |
