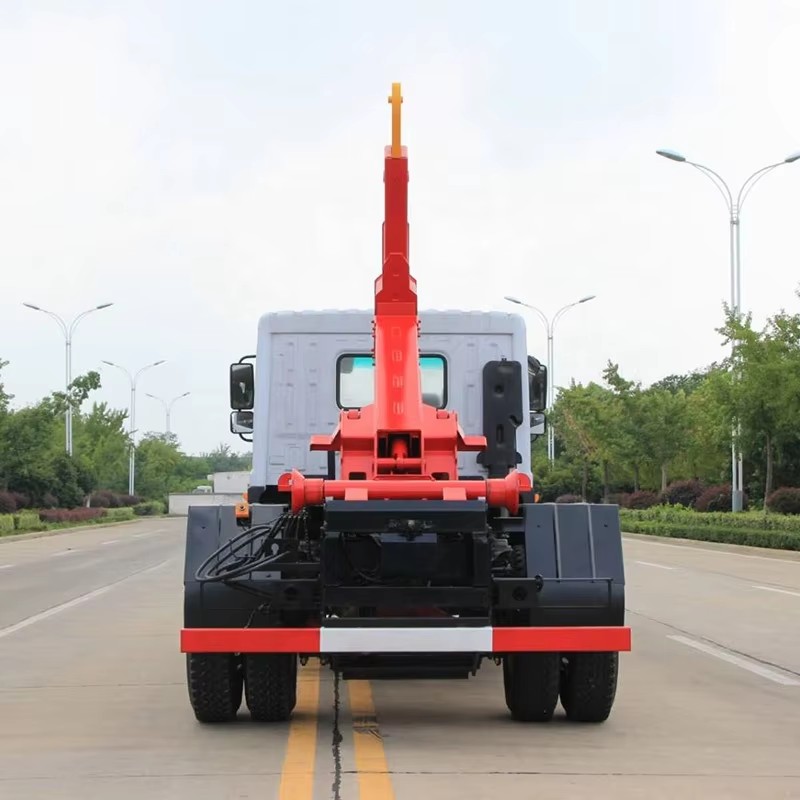

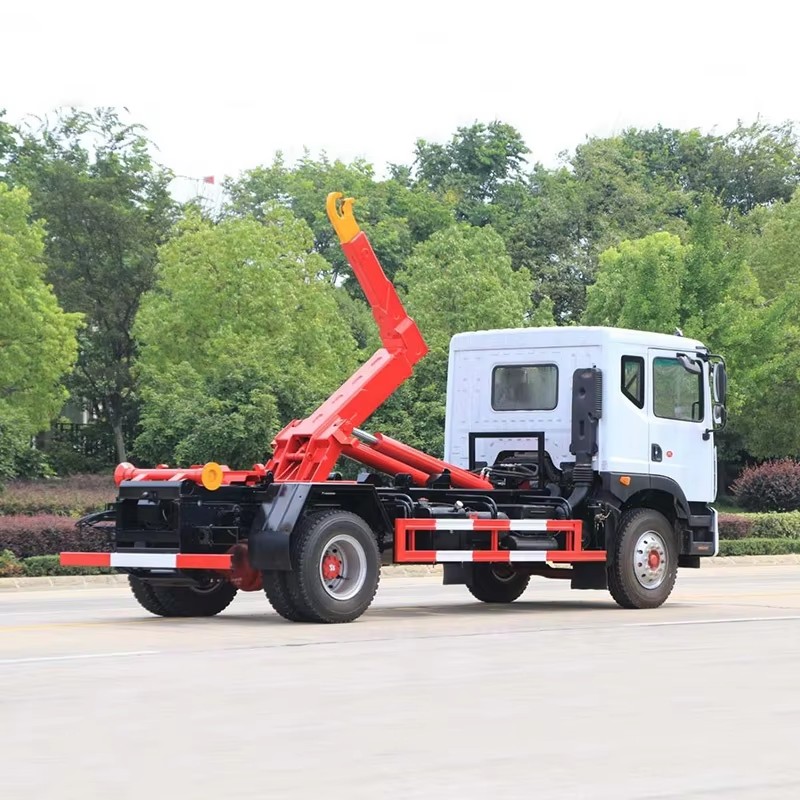

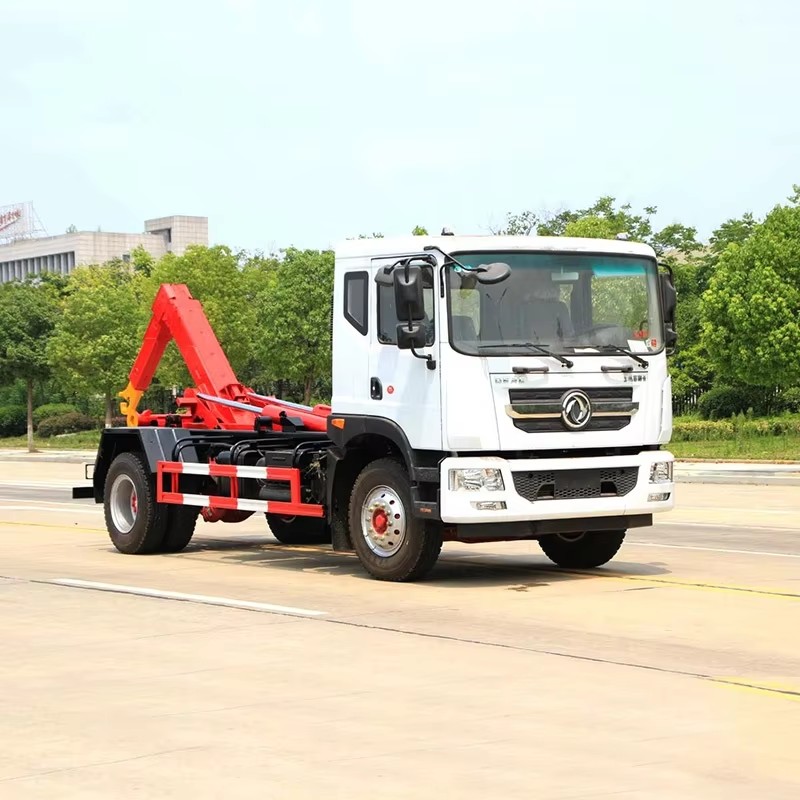

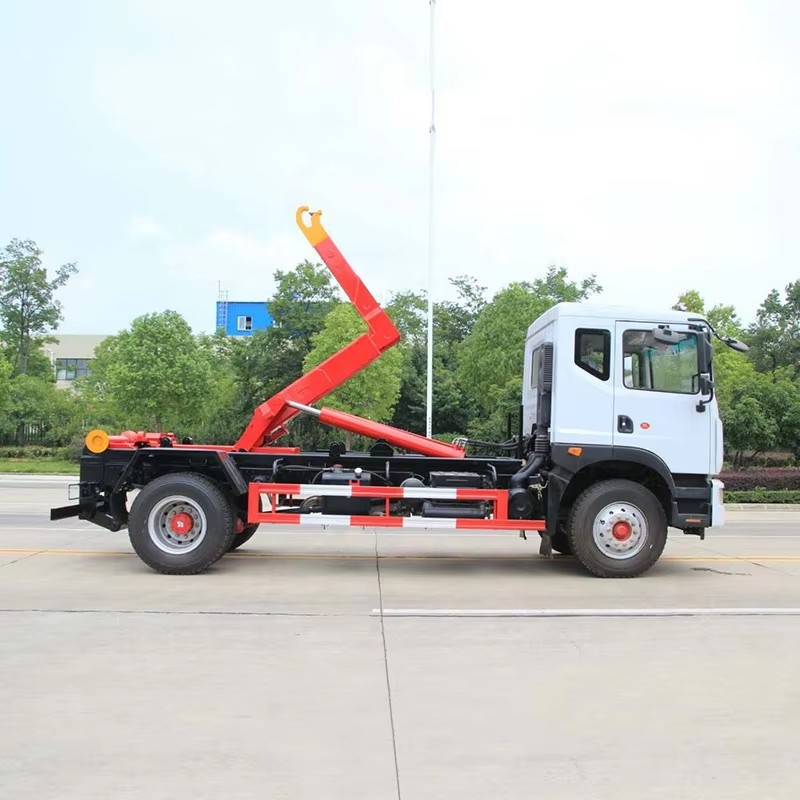

Dongfeng Customized 14 Ton 16 Ton 18 Ton Auto Type Roll Off Garbage Collection Truck Hook Arm Lift G

A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

Inquiry now

[VehicleTechnical Parameters]
Product Name	Hook Lift Garbage Truck
Kerb Weight (Kg)	6860
Overall Dimensions (mm)	6560×2500×3120
Lifting Capacity(Kg)	14000-18000
Big Arm Structure	Integrated Molding
Working Environment Temperature （℃）	-20~45
Operating Mode	Automatic+Manual
Dumping Angle of Garbage Bin（°）	70
Garbage Bin Capacity(m³)	12
Trash Container Thickness（mm）	4 Side 5 Bottom
Garbage Bin Size(mm)	4600×2200×1200
Material of Garbage Bin	Q235 Carbon Steel
Garbage Bin Coating Process	Baking Varnish
Max Passengers Allowed	2
[Chassis Technical Parameters]
Brand Name	Dongfeng
Brake	Air Brake/Oil Brake
Fuel Type	Diesel
Engine Power（kw）	132
Front Axle/Rear Axle (t)	4.5/10
Gearbox Model	8-Speed Manual
Number of Axles	2
Wheelbase (mm)	4500
Number of Tires	6
Tire Size	10.00R20
